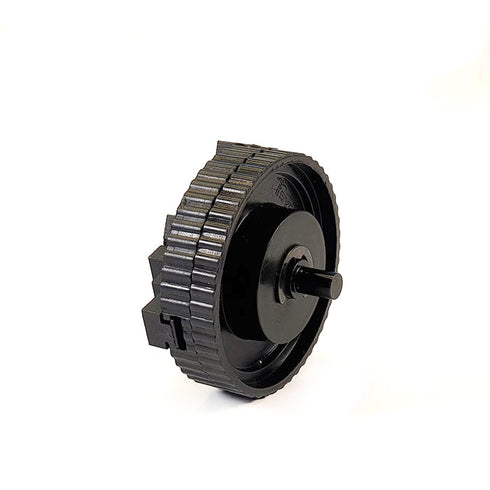

Jadrak T-SYSTEM Parts - 3-axis interlocking centering chuck (TCK-C)
This chuck can be applied where the motor insertion part is female, such as ATC.
A typical female type chuck is TCK-B.
A typical female type chuck is TCK-B.
Notice
It is not compatible with the existing T-SYSTEM. It is for compatibility with other companies such as ATC.
The main axis of the existing T-SYSTEM is TCK-B.
The main axis of the existing T-SYSTEM is TCK-B.
OD of Chuck body: 74mm / Shaft OD : 8mm
DETAIL DESCRIPTION
??SPECIFICATION :
- Actual Chuck OD : 74mm

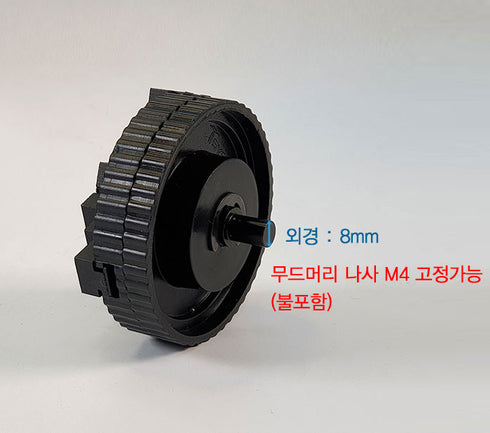

- Shaft OD : 8mm
- Depth of Locking Jaw : 44mm
- Adaptible Min/Mix blankg,Grip Dia.: 4mm/50mm
??MATERIAL :
Reinforced plastic body + aluminum anodized shaft
??COMPONENTS:
Body, non-woven fabric (3 pcs.)
??CHARACTERISTICS

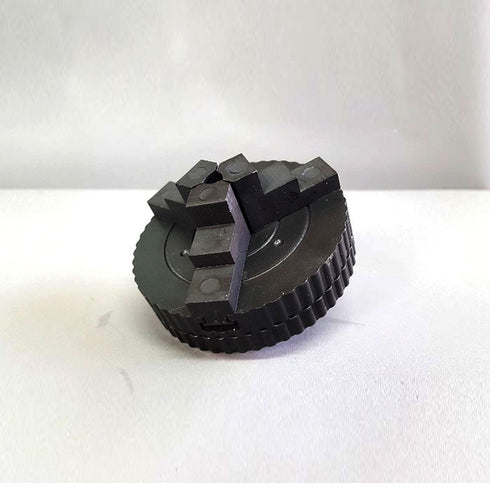

Three axes are interlocked with one rotation, and the centering is automatically adjusted without eccentricity.

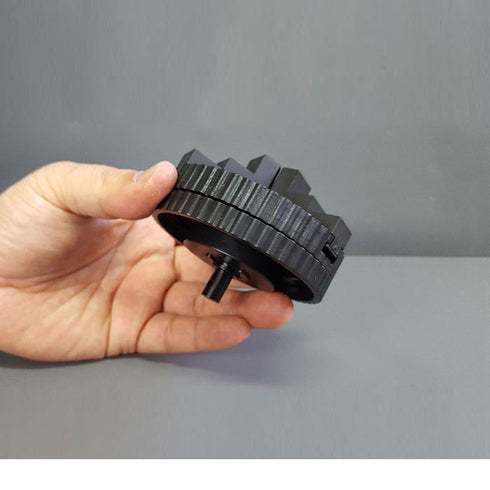

It is very light, less than 100g, and is well balanced with a motor weighing around 100g.
Because self-locking is strong according to the characteristics of the material, blanks or rods do not fall off without a separate device. (Be sure to tighten it strongly.) The non-woven sticker minimizes damage to the blank or grip even with strong tightening.
It is possible to grip objects with an inner diameter of 30mm or more, which are not for road building purposes.
It is very light, less than 100g, and is well balanced with a motor weighing around 100g.
Because self-locking is strong according to the characteristics of the material, blanks or rods do not fall off without a separate device. (Be sure to tighten it strongly.) The non-woven sticker minimizes damage to the blank or grip even with strong tightening.
It is possible to grip objects with an inner diameter of 30mm or more, which are not for road building purposes.

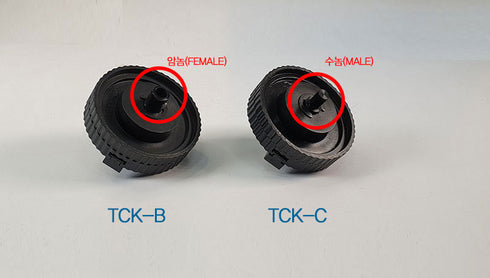

??COMPARISION WITH TCK-B CHUCK
The shape of the applied shift is different. TCK-B: It is a female type and has a shaft hole (hole-8mm). Compatible with T-SYSTEM dryers.
TCK-C : It is a male type and has no shaft hole and is blocked. (Shaft outer diameter -8mm) Not compatible with T-SYSTEM dryer.
TCK-C : It is a male type and has no shaft hole and is blocked. (Shaft outer diameter -8mm) Not compatible with T-SYSTEM dryer.
