PRODUCT INFORMATION
It is a blank in the form of work by basically inserting a pipe into the blank. It is a blank designed to increase sensitivity by making the front light and thin, in the form of a connector that connects the blank and the pipe.

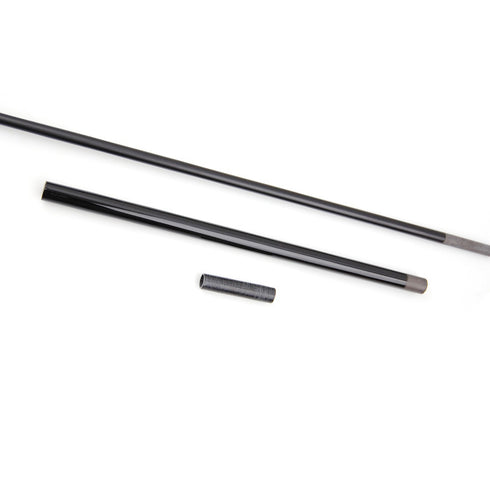

A customized carbon pipe and connector are included, and the handle length can be further extended with an existing general-purpose carbon pipe. It is a product of a domestic manufacturing company with experience in lure rods with high elasticity carbon, and guarantees performance with domestic blanks.
Please contact us for shipping costs at maxlim@naver.com or whatsapp 82-10-2602-7129
Model No. | Action | Power | Length (ⓐ+ⓑ-ⓒ) |
Weight (ⓐ+ⓑ+ⓒ) |
Blank Size (ⓐ) |
Pipe Size (ⓑ) |
Connect Size (ⓒ) |
---|---|---|---|---|---|---|---|
MCM62UL | UL-L | F | 1,863mm | 43.5g | 1,660mm/22.9g (T:1.5mm/B:8.3mm) |
261mm / 13.3g (ID:13mm/OD:14.5mm) |
58mm / 7.3g (ID:8.5mm/OD:12.5mm) |
MC-64L | L | F | 1,914mm | 46.6g | 1,710mm / 27.1g (T:1.5mm/B:9.3mm) |
262mm / 13.4g (ID:13mm/OD:14.5mm) |
58mm / 6.1g (ID:9.5mm/OD:12.5mm) |
MC-66L | L | F | 1,964mm | 48.8g | 1,735mm / 27.7g (T:1.6mm/B:9.3mm) |
287mm / 14.9g (ID:13mm/OD:14.5mm) |
58mm / 6.2g (ID:9.5mm/OD:12.8mm) |
MC-64ML | ML | F | 1,902mm | 51.8g | 1,700mm / 28.6g (T:1.7mm/B:10mm) |
260mm / 18g (ID:13mm/OD:15mm) |
58mm / 5.2g (ID:10mm/OD:12.9mm) |
MC-66ML | ML | F | 1,957mm | 49.7g | 1,730mm / 29.8g (T:1.6mm/B:10mm) |
285mm / 14.7g (ID:13mm/OD:14.5mm) |
58mm / 5.2g (ID:10mm/OD:12.9mm) |
MC-66M | M | F | 1,962mm | 58.1g | 1,700mm / 31.4g (T:1.8mm/B:10.3mm) |
320mm / 22.1g (ID:13mm/OD:14.8mm) |
58mm / 4.6g (ID:10.5mm/OD:12.9mm) |
MC-66M | M | F | 1,962mm | 58.1g | 1,700mm / 31.4g (T:1.8mm/B:10.3mm) |
320mm / 22.1g (ID:13mm/OD:14.8mm) |
58mm / 4.6g (ID:10.5mm/OD:12.9mm) |
MC-66M-MH | M-MH | F | 1,961mm | 64.9g | 1,610mm / 36.8g (T:1.7mm/B:10.8mm) |
410mm / 25.5g (ID:13mm/OD:14.7mm) |
59mm / 2.6g (ID:11.5mm/OD:12.9mm) |
MC-66MH | MH | F | 1,957mm | 54.6g | 1,695mm / 35.8g (T:1.8mm/B:10.8mm) |
320mm / 15.2g (ID:13mm/OD:14.5mm) |
58mm / 3.6g (ID:11mm/OD:12.8mm) |
MC-69H | H | F | - | 70.8g | 1,720mm / 46.3g (T:2.0mm/B:13mm) |
370mm / 24.5g (ID:13mm/OD:14.7mm) |
- |
MC-70H | H | F | - | 74.8g | 1,800mm / 48.2g (T:1.7mm/B:12.9mm) |
370mm / 26.6g (ID:13mm/OD:15mm) |
- |
- Specifications are measured for one sample per standard, and there is a possibility of error within a certain range.
- MC-69H / MC-70H is a type in which the pipe is directly inserted into the blank without a connector, and the total length may vary depending on the insertion depth.
- Action and power are suggested when assembling according to factory design intent, and may vary if pipes are lengthened or parts are omitted.

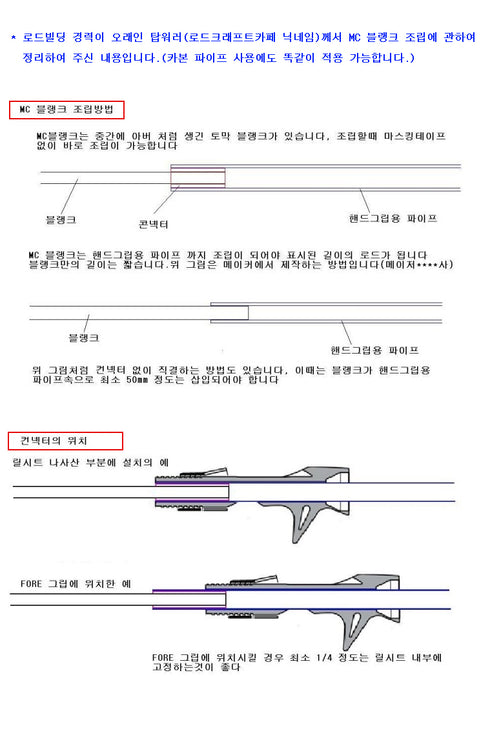

How to assemble blanks
